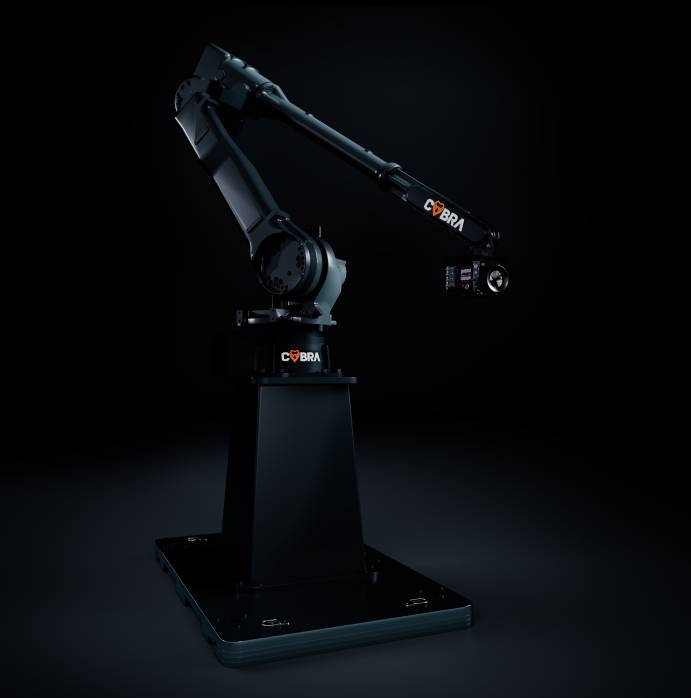

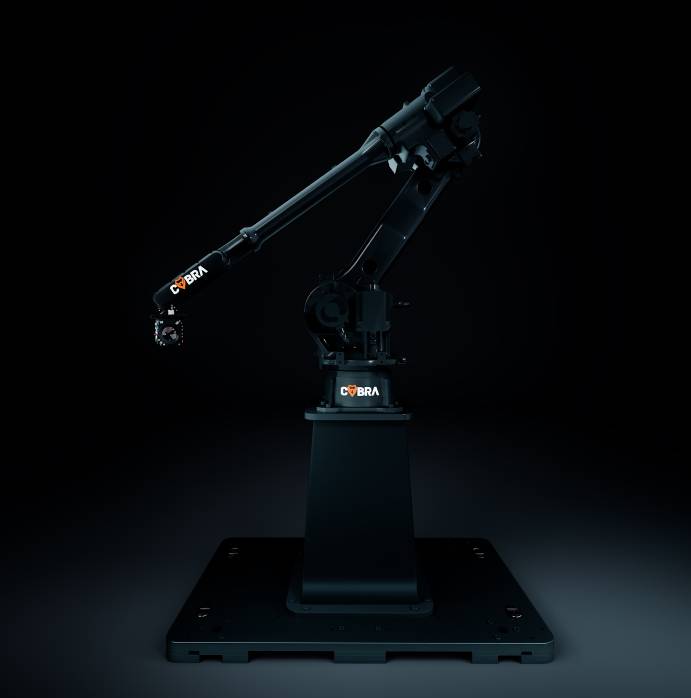

Cobra High Speed Cinebot

The Cobra Hi-Speed Cinebot is the latest additional to Camera Control's collection of motion control tools and has the longest arm reach of our high speed equipment, allowing for greater freedom of movement vertically and side to side. This has proved to be very useful for shooting live action subjects and provides further creative possibilities.

10 FT 6 IN
Reach
35 LB
Payload
45MINS
Set up time
13 FT/SEC
Speed at camera
Portabililty
Just like the highly acclaimed bolt, we have developed a system for rapidly setting up and repositioning Cobra to enable shots to be achieved quickly in studio and location settings.
Software
Our rigs are programmed using Flair Motion Control software, the most advanced motion control software available. Moves can be planned in 3D packages, fed into Flair and executed by our rigs. Reversely, moves programmed in Flair can be exported to 3D packages. For following live action or adding a handheld feel we have handweels and pan bars (encoded Fluid head) as well as options for manual focus/zoom record and playback.
Download specs
Cobra Specs
Range
Maximum Height (looking down)
Lowest position
Max reach (from rotate centre)
Minimum reach
Rig Dimensions
Lowest Travel Height
Rig Width
Rig Length
Shooting Speeds
Feet Vertical move
Feet Horizontal move
Track
Roll
Max Speed at Camera
Weights
Rig
Max Camera Payload
Power Requirements
Stage
Generator
Feet
Meters
14 ft
4.2 m
-5 ft
-1.5 m
10ft 6in
3.2 m
-
-
Feet
Meters
8 ft
2.4 m
6ft
1.8m
6ft
1.8m
Feet
Meters
10ft per sec
3m /sec
13ft per sec
4m /sec
-
-
+/-360 degrees
400 degrees sec
13ft/sec
4m/sec
Pounds
Kilograms
2500 lb
1200 kg
35lb
16kg
Pounds
Kilograms
120/208 5 Wire 3 Phase Camlok
15kW

Contact Us

Our range of operations covers the whole of North America and we frequently travel to countries in South America.
