Engineered for ultra high-speed motion with uncompromising precision.

Explore our Rigs

Bolt

High Speed Cinebot

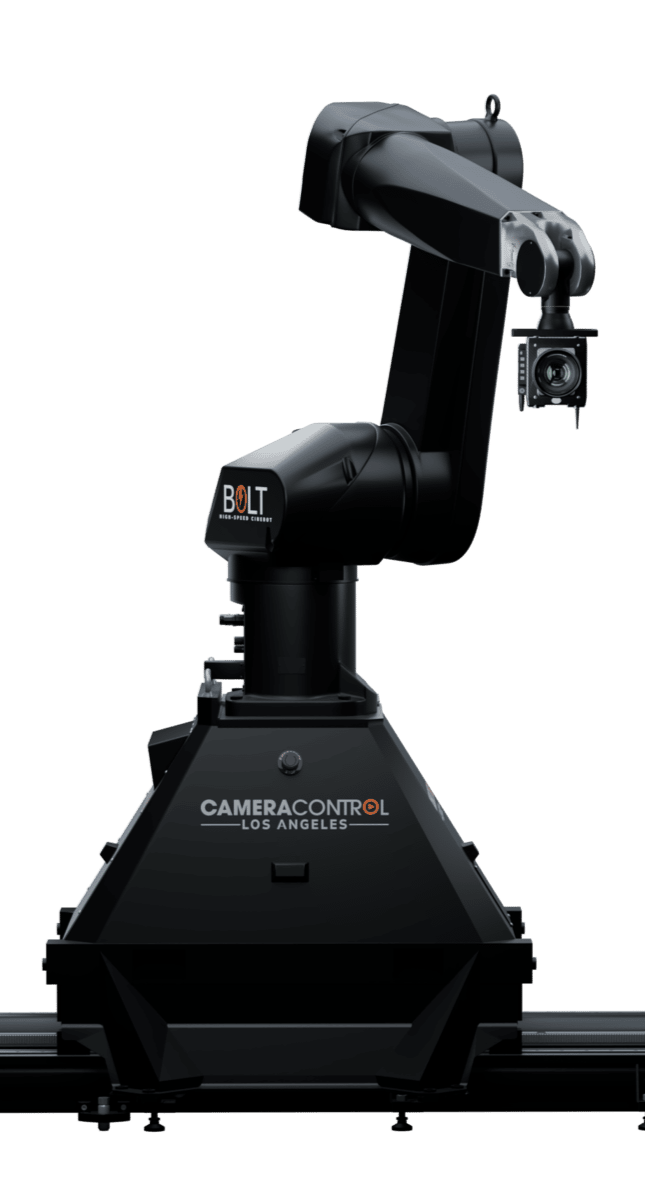

Bolt is the world's fastest motion control system, built for precision camera moves at ultra high speeds. It accelerates from a standstill to full speed almost instantly, so the camera can start, stop, and reverse in a fraction of a second. Bolt can follow falling objects and capture images impossible by any other method, and mounts on a high speed base for fast tracking moves.

45 MINS
Set up time
35lb
Payload
6 FT
Reach
26FT/SEC
Speed at camera

BUILT FOR DEMANDING SHOTS

Trusted by the world's top filmmaker, studios and brands.

Automobile

Dynamic moves at extreme speeds

VFX/CGI

Precise motion for perfect integration

Product

Capture every detail with perfection

Liquid

Pinpoint accuracy at high frame rates

Sports

Freeze the fastest moments

Bolt

Specs

Range
Feet
Meters
Maximum Height (looking down)
9.2 ft
2.8 m
Lowest position
0 ft
0 m
Max reach (from rotate centre)
6 ft
1.8 m
Minimum reach
-
-
Rig Dimensions
Feet
Meters
Lowest Travel Height
6 ft
1.8 m
Rig Width
4ft
1.3m
Rig Length
5ft
1.5m
Shooting Speeds
Feet
Meters
Feet Vertical move
9ft per sec
2.7m per second
Feet Horizontal move
9ft per sec
2.7m per second
Track
16.5ft per sec
5m per second
Roll
10 Turns
400 degrees sec
Max Speed at Camera
26ft/sec
8m/sec
Weights
Pounds
Kilograms
Rig
1320 lb
600 kg
Max Camera Payload
35lb
16kg
Power Requirements
Power
Stage
3 phase 220V
Generator
15kW

Bolt X

High Speed Cinebot

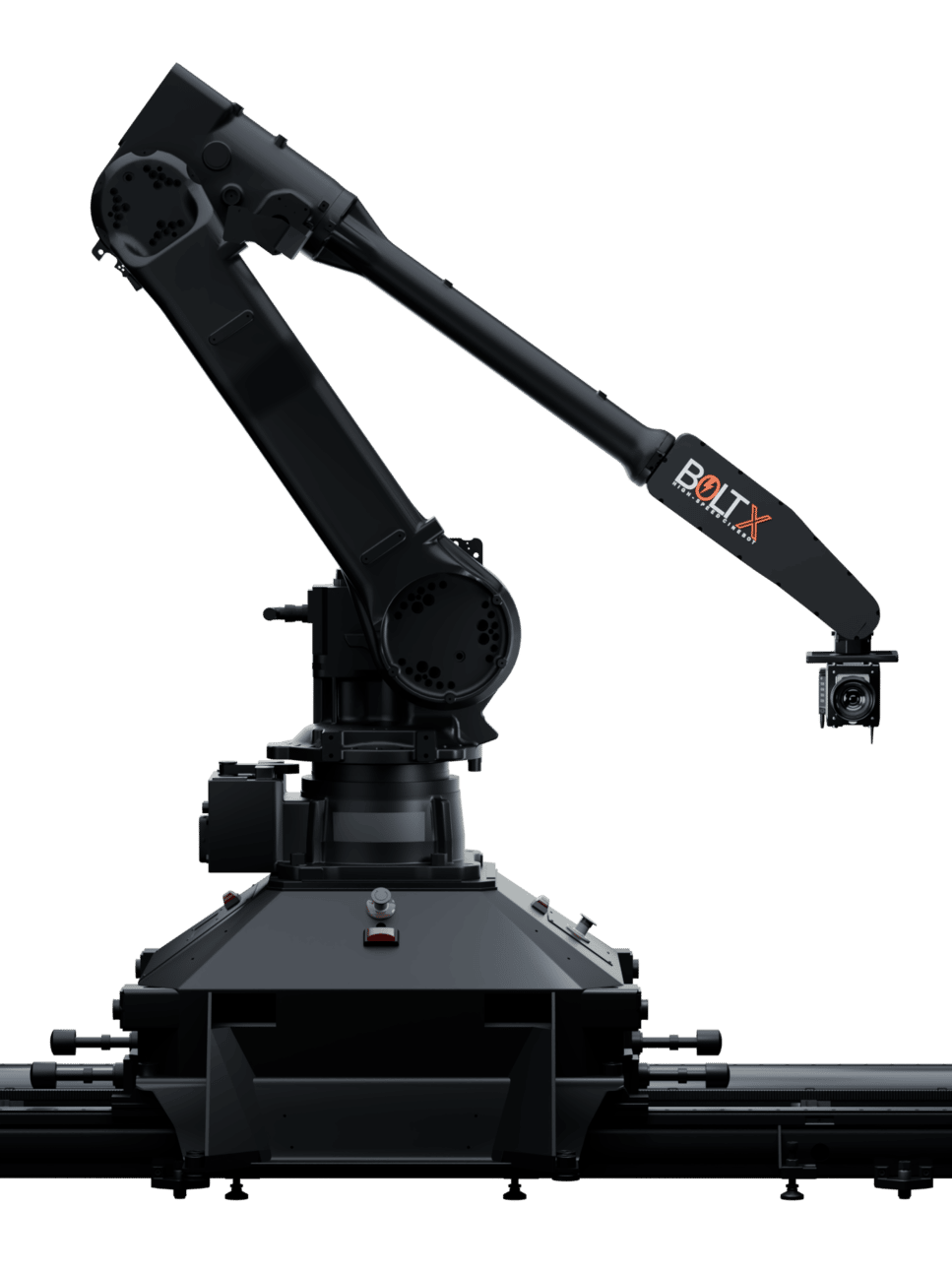

Bolt X delivers the same instant acceleration as the original Bolt with the longest reach in the high speed range. With a 10 foot 6 inch arm and speeds up to 32 feet per second, it covers more vertical and horizontal distance while holding pinpoint accuracy, making it ideal for larger sets and shots that demand both extreme speed and extended reach.

45 MINS
Set up time
35 LB
Payload
10 FT 6 IN
Reach
32 FT/SEC
Speed at camera

BUILT FOR DEMANDING SHOTS

Trusted by the world's top filmmaker, studios and brands.

Automobile

Dynamic moves at extreme speeds

VFX/CGI

Precise motion for perfect integration

Product

Capture every detail with perfection

Liquid

Pinpoint accuracy at high frame rates

Sports

Freeze the fastest moments

Bolt X

Specs

Range
Feet
Meters
Maximum Height (looking down)
13 ft
4 m
Lowest position
0 ft
0 m
Max reach (from rotate centre)
10ft 6in
3.2m
Minimum reach
-
-
Rig Dimensions
Feet
Meters
Lowest Travel Height
6ft 6in
2.0m
Rig Width
4ft
1.3m
Rig Length
7ft
2.0m
Shooting Speeds
Feet
Meters
Feet Vertical move
10ft per sec
3m / sec
Feet Horizontal move
13ft per sec
4m /sec
Track
16.5ft per sec
5m per second
Roll
+/- 455 degrees
400 degrees sec
Max Speed at Camera
32ft/sec
10m/sec
Weights
Pounds
Kilograms
Rig
2300 lb
1043 kg
Max Camera Payload
1043 kg
16kg
Power Requirements
Power
Stage
120/208 5 Wire 3Phase Camlok
Generator
100amp minimum

Bolt Jr

High Speed Cinebot

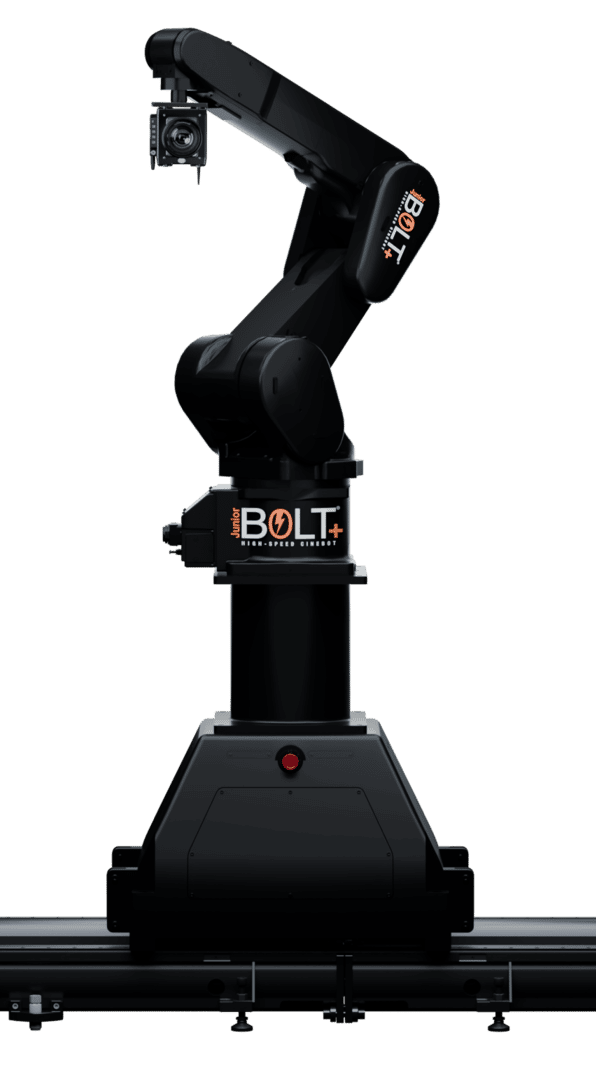

Bolt Jr+ is a compact cinema robot that can run on either standard 10-foot rails, the new narrow-scale 6-foot rails, or in a pedestal configuration. It only requires single-phase power, and features an adjustable base that allows it to fit through standard doorways, making it very suitable for smaller sets and locations.

45 MINS
Set up time
26 LB
Payload
4 FT 6 IN
Reach
20 FT/SEC
Speed at camera

BUILT FOR DEMANDING SHOTS

Trusted by the world's top filmmaker, studios and brands.

Automobile

Dynamic moves at extreme speeds

VFX/CGI

Precise motion for perfect integration

Product

Capture every detail with perfection

Liquid

Pinpoint accuracy at high frame rates

Sports

Freeze the fastest moments

Bolt Jr

Specs

Range
Feet
Meters
Maximum Height (looking down)
8 ft
2.45 m
Lowest position
0 ft
0 m
Max reach (from rotate centre)
4ft 6in
1.4m
Minimum reach
-
-
Rig Dimensions
Feet
Meters
Lowest Travel Height
5ft
1.5m
Rig Width
2ft 4in
0.7m
Rig Length
4ft
1.2m
Shooting Speeds
Feet
Meters
Feet Vertical move
6ft per sec
1.8m /sec
Feet Horizontal move
6ft per sec
1.8m /sec
Track
10ft per sec
3m /sec
Roll
+/-720 degrees
600 degrees sec
Max Speed at Camera
20ft/sec
6m/sec
Weights
Pounds
Kilograms
Rig
660 lb
300 kg
Max Camera Payload
26lb
12 kg
Power Requirements
Power
Stage
120V. (Or 240v)
4 m
Generator
3kW
4 m

Cobra

High Speed Cinebot

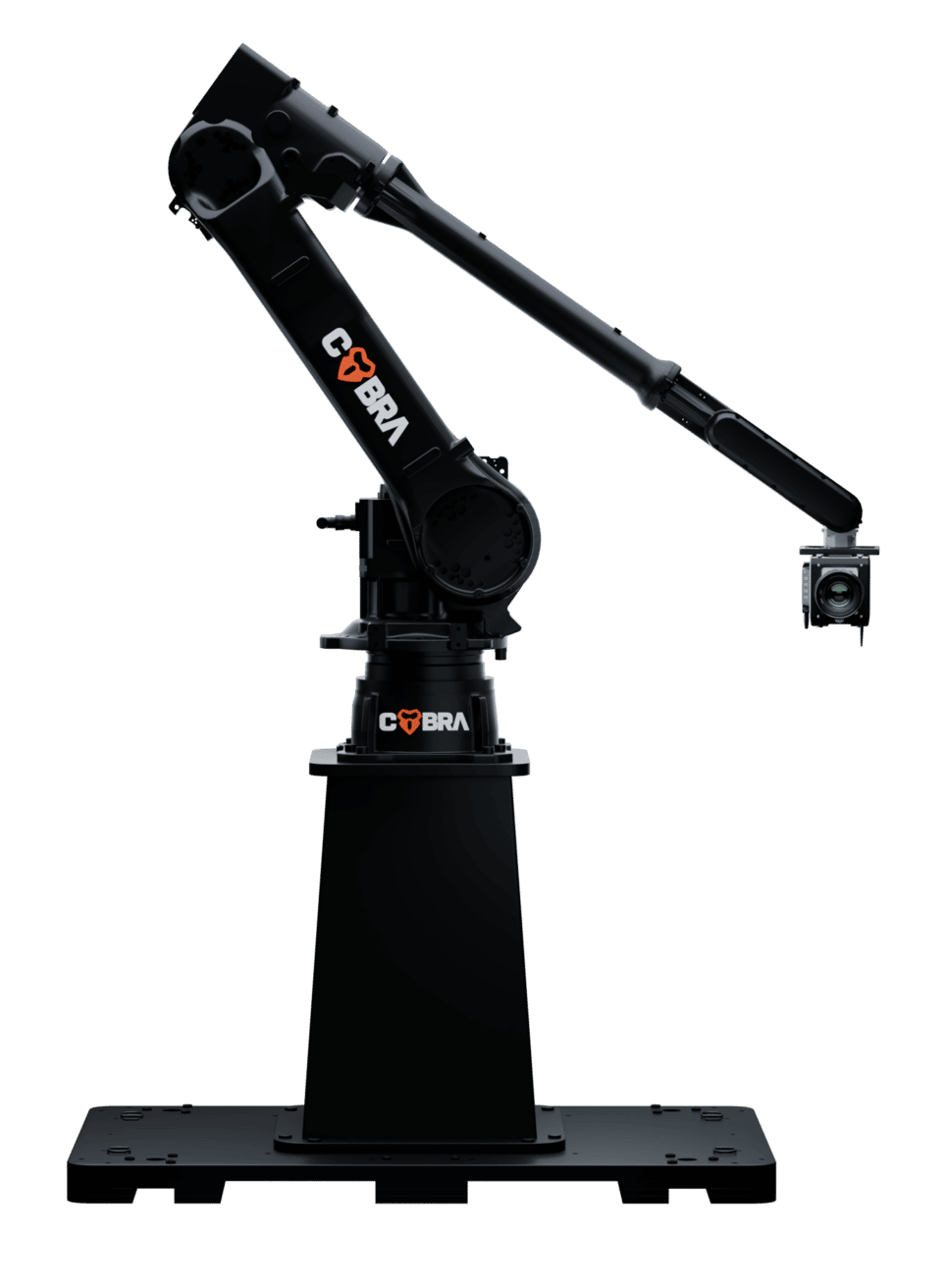

Cobra has the longest arm reach of our high speed equipment, allowing greater freedom of movement vertically and side to side. This added range makes it especially effective for shooting live action subjects and opens up creative possibilities that shorter arms cannot reach, all with the rapid, repeatable motion the high speed range is known for.

10 FT 6 IN
Reach
35 LB
Payload
45MINS
Set up time
13 FT/SEC
Speed at camera

BUILT FOR DEMANDING SHOTS

Trusted by the world's top filmmaker, studios and brands.

Automobile

Dynamic moves at extreme speeds

VFX/CGI

Precise motion for perfect integration

Product

Capture every detail with perfection

Liquid

Pinpoint accuracy at high frame rates

Sports

Freeze the fastest moments

Cobra

Specs

Range
Feet
Meters
Maximum Height (looking down)
14 ft
4.2 m
Lowest position
-5 ft
-1.5 m
Max reach (from rotate centre)
10ft 6in
3.2 m
Minimum reach
-
-
Rig Dimensions
Feet
Meters
Lowest Travel Height
8 ft
2.4 m
Rig Width
6ft
1.8m
Rig Length
6ft 6in
1.8m
Shooting Speeds
Feet
Meters
Feet Vertical move
10ft per sec
3m /sec
Feet Horizontal move
13ft per sec
4m /sec
Track
-
-
Roll
+/-360 degrees
400 degrees sec
Max Speed at Camera
13ft/sec
4m/sec
Weights
Pounds
Kilograms
Rig
2500 lb
1200 kg
Max Camera Payload
35lb
16kg
Power Requirements
Power
Stage
120/208 5 Wire 3 Phase Camlok
Generator
15kW
