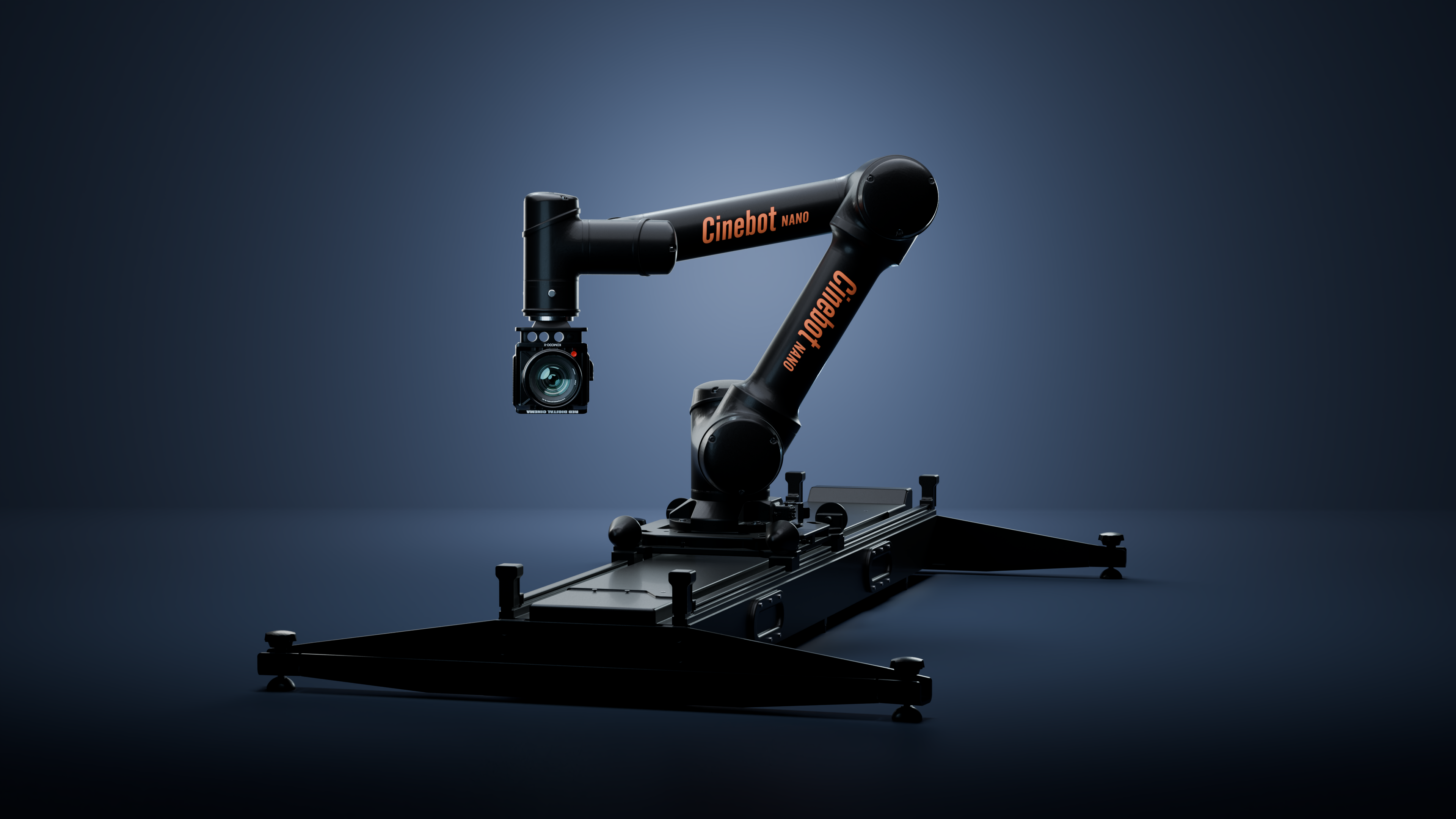

Cinebot nano Compact Cinebot

Camera Control presents the Cinebot nano, professional robotic camera movement in a footprint small enough to pack into your trunk and check onto a flight. The nano delivers the repeatable, frame accurate moves of a full size Cinebot in a compact body, making motion control viable for tight studios, location shoots, and fast turnaround productions where space and transport were once the limiting factor.

This is some text inside of a div block.
Set up time
This is some text inside of a div block.
Payload
This is some text inside of a div block.
Reach
This is some text inside of a div block.
Speed at camera

Portability

Built around travel from the ground up, the Cinebot nano breaks down into airline friendly cases and reassembles in minutes. The operator can move the rig between sets, studios, and locations without a crew or a truck, opening up motion control on shoots where it was never an option before. Quick setup and a single phase power draw mean the nano is ready to shoot almost anywhere.

Software

Our rigs are programmed using Flair Motion Control software, the most advanced motion control software available. Moves can be planned in 3D packages, fed into Flair and executed by our rigs. Reversely, moves programmed in Flair can be exported to 3D packages. For following live action or adding a handheld feel we have handwheels and pan bars (encoded Fluid head) as well as options for manual focus/zoom record and playback.

Cinebot Nano

Specs

Range
Feet
Meters
Maximum Height (looking down)
4'3"
1.3 m
Lowest position
-1'11"
-0.58 m
Max reach (from rotate centre)
3'2"
1.0 m
Minimum reach
Rig Dimensions
Feet
Meters
Lowest Travel Height
Rig Width
9.3"
23.5 cm
Rig Length
4'9"
1.45 m
Shooting Speeds
Feet
Meters
Feet Vertical move
10.5 ft/s
3.2 m/s
Feet Horizontal move
13.8 ft/s
4.2 m/s
Track
3.3 ft/s
1.0 m/s
Roll
225°/s
225°/s
Max Speed at Camera
13.8 ft/s
4.2 m/s
Weights
Pounds
Kilograms
Rig
108 lbs
49 kg
Max Camera Payload
15.4 lbs
7 kg
Power Requirements
Power
Stage
110–264 VAC
Generator
Less than 150 W
