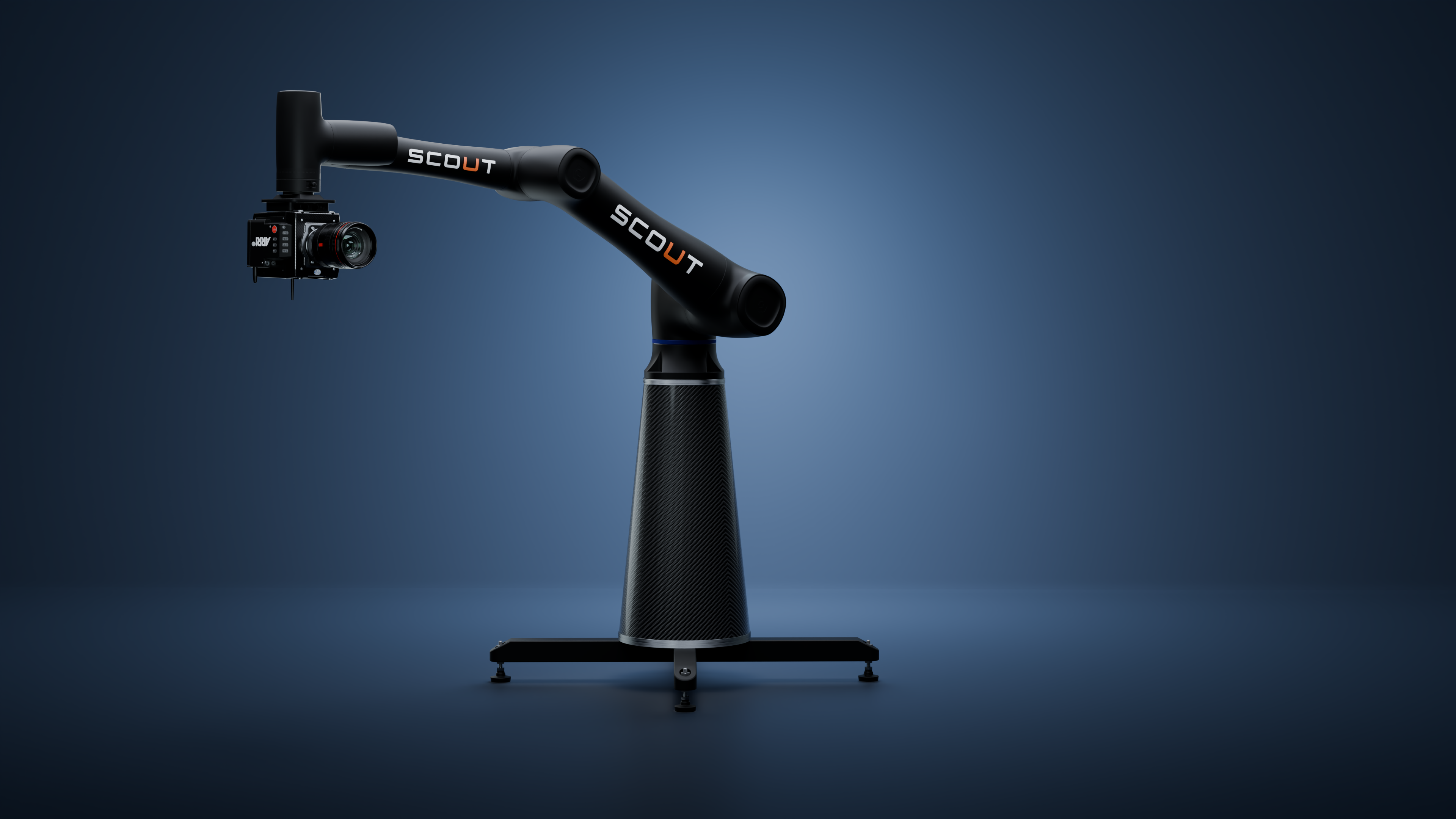

Scout Automated Tracking Cinebot

Scout is built to capture motion the moment it happens. Its automated tracking engine frames and follows subjects in real time, freeing operators to set up the next shot rather than chase the current one. As part of Camera Control’s compact systems range, Scout brings intelligent subject tracking into a small, portable package suited to live action, sports, and fast moving sets.

This is some text inside of a div block.
Set up time
This is some text inside of a div block.
Payload
This is some text inside of a div block.
Reach
This is some text inside of a div block.
Speed at camera

Real Time Tracking

Scout’s tracking system locks onto a subject and keeps it framed automatically, adjusting pan, tilt, and reach on the fly. This lets a single operator manage moves that would normally take a full team to follow, and it captures spontaneous action with a consistency that manual operation cannot match. Tracking profiles are fully adjustable so you can dial in how tightly Scout holds and leads its subject.

Software

Our rigs are programmed using Flair Motion Control software, the most advanced motion control software available. Moves can be planned in 3D packages, fed into Flair and executed by our rigs. Reversely, moves programmed in Flair can be exported to 3D packages. For following live action or adding a handheld feel we have handwheels and pan bars (encoded Fluid head) as well as options for manual focus/zoom record and playback.

Scout

Specs

Range
Feet
Meters
Maximum Height (looking down)
6.0 ft
1.8 m
Lowest position
-2.0 ft
-0.6 m
Max reach (from rotate centre)
3.3 ft
1.3 m
Minimum reach
-
-
Rig Dimensions
Feet
Meters
Lowest Travel Height
4.2 ft
1.3 m
Rig Width
3.0 ft
0.9 m
Rig Length
3.0 ft
0.9 m
Shooting Speeds
Feet
Meters
Feet Vertical move
4 ft/sec
1.2 m/sec
Feet Horizontal move
4 ft/sec
1.2 m/sec
Track
-
-
Roll
2 turns
220°/sec
Max Speed at Camera
4 ft/sec
1.2 m/sec
Weights
Pounds
Kilograms
Rig
88 lbs
40 kg
Max Camera Payload
14.4 lbs
7 kg
Power Requirements
Power
Stage
Single Edison 15A outlet
Generator
15A
