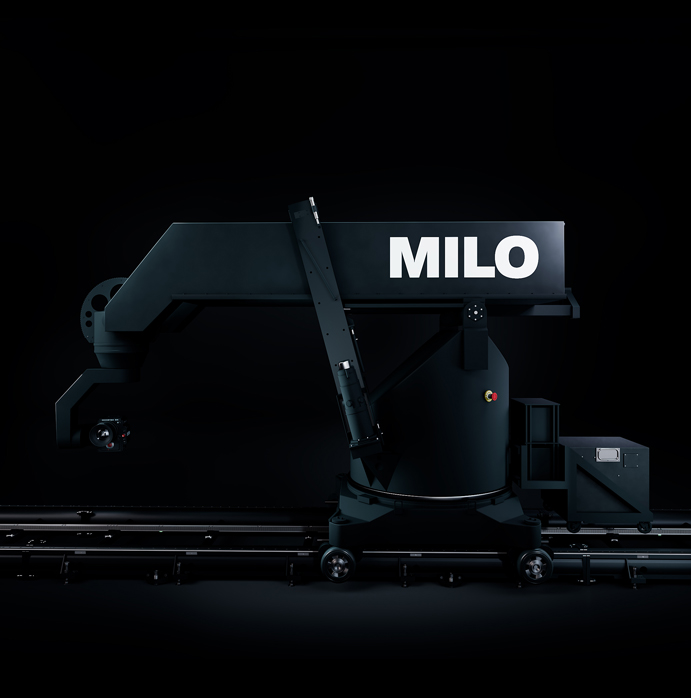

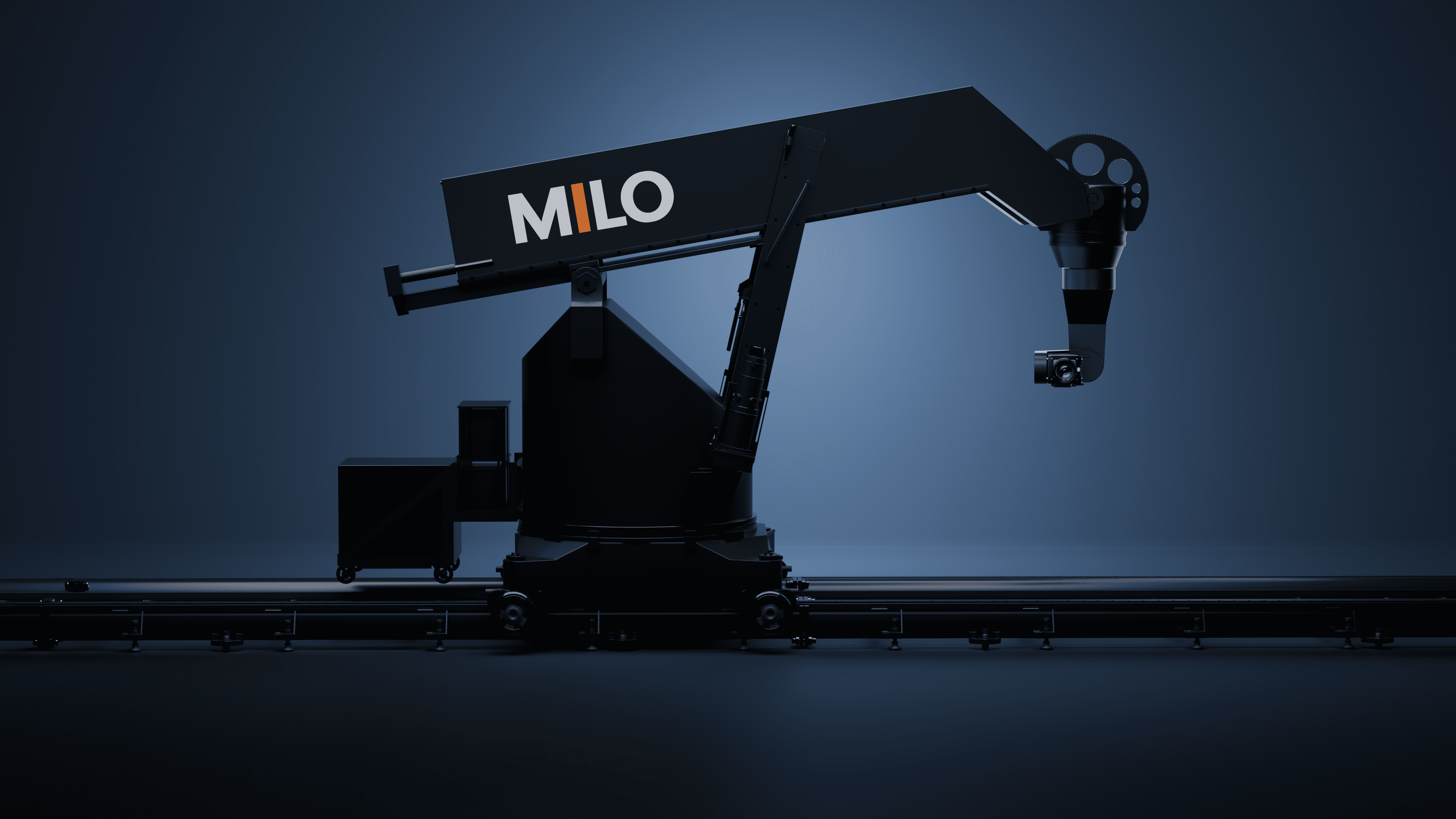

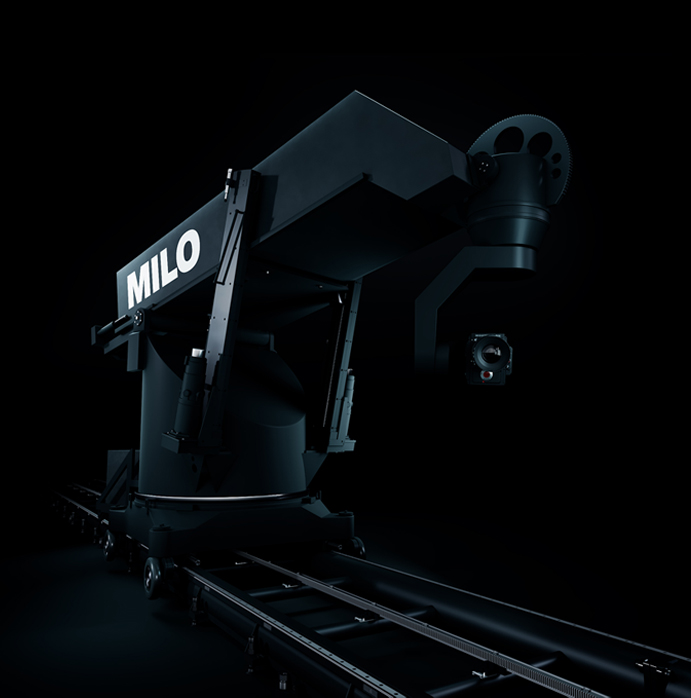

Milo Motion Control Rig

Its incredibly rigid structure allows it to do macro work as easily as large, live-action moves. It has excellent stability when starting and stopping quickly which helps when importing CGI moves. It has a secondary or "outer" arm which allows the camera to go from underslung to overslung in one continuous motion, maximizing vertical travel and enabling it to reach into small spaces such as car interiors. The Milo can take a wide range of camera packages from IMAX and 3D to HiDef and DSLR.

12 FT
Max lens height
-2 FT 9 IN
Min lens height
1 hour
Set up time
10 FT
Reach
This is some text inside of a div block.
Set up time
This is some text inside of a div block.
Payload
This is some text inside of a div block.
Reach
This is some text inside of a div block.
Speed at camera

Portabililty

We have transported our Milos all over the USA and overseas. The rig is designed to be easy to move around a location or studio space on floor wheels. It can be transported whole when traveling by road. For longer trips it is designed to be easily taken apart into 7 main pieces (excluding rails) by just 3 people. Typically from arrival on set the Milo is ready to shoot within 60 minutes--a mere hour!

Long Arm Milo

A longer arm can be fitted to the Milo extending its reach and increasing maximum camera height from 12 to 17 feet. Because of Milo's incredibly rigid structure, the longer arm maintains excellent stability when starting and stopping quickly.

Milo

Specs

Range
Feet
Meters
Maximum Height (looking down)
12 ft
3.7 m
Lowest position
-2ft 9in
-0.84 m
Max reach (from rotate centre)
10 ft
3 m
Minimum reach
-
-
Rig Dimensions
Feet
Meters
Lowest Travel Height
6ft 10in
2.09 m
Rig Width
4ft 2in
1.3 m
Rig Length
11ft
3.15 m
Shooting Speeds
Feet
Meters
Feet Vertical move
4ft /sec
1.2m /sec
Feet Horizontal move
5ft /sec
1.5m /sec
Track
6ft /sec
1.8m /sec
Roll
Unlimited
120 degrees /sec
Max Speed at Camera
10ft/sec
3m/sec
Weights
Pounds
Kilograms
Rig
1200 lb
545 kg
Max Camera Payload
44lbs
20kg
Power Requirements
Power
Stage
120V
Generator
5 kW
