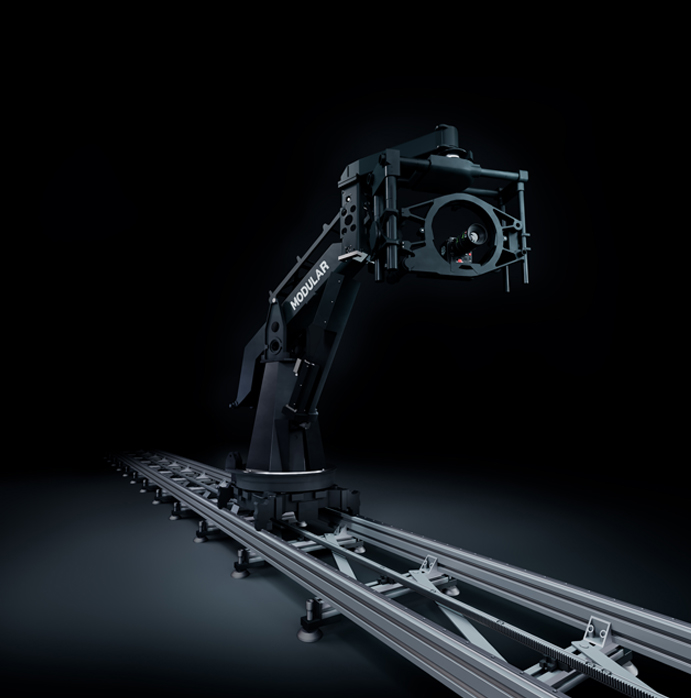

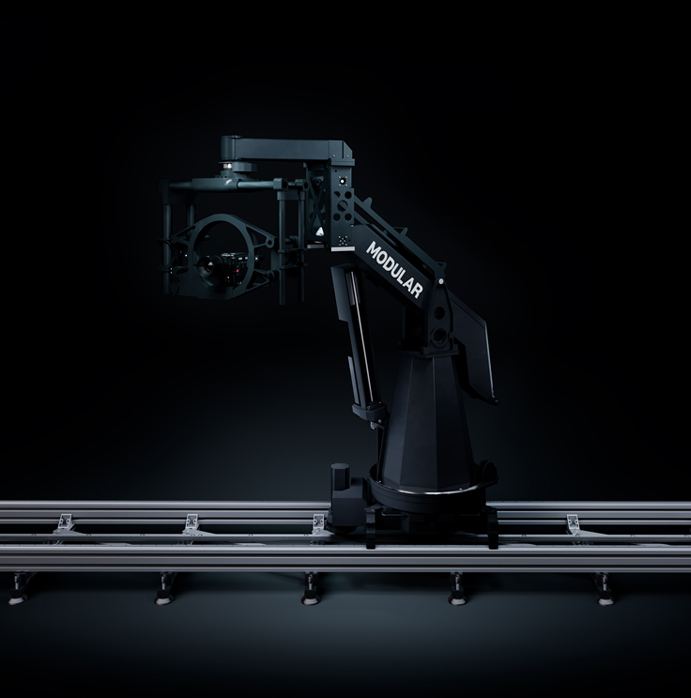

Modular Motion Control Rig

The Modular offers multiple light-weight solutions for studio or location shooting. The Modular's small foot print allows it to be moved easily on location and is narrow enough to fit through standard doorways.

As its name implies, the Modular is multi configurable. It has 3 main set-ups. The first is a simple Pan/Tilt head mounted on the track base. With tripod legs different camera heights can be achieved. Secondly a lift column can be mounted to the base to control vertical movement of the camera. Lastly with the turret and arm, the Modular becomes a multi axis motion control rig with Track, Lift, Rotate, Pan and Tilt, Zoom and Focus. In whatever configuration the Modular is ready to shoot within an hour of arrival on set.
9 FT
Max lens height
11 FT/SEC
Track speed
400 LB
Weight
45 MINS
Set up time
Versatility
The Modular runs on our precision bearing straight track. A circular dolly track option is available with friction drive. For following live action or adding a handheld feel we have available handweels and pan bars (encoded Fluid head) as well as options for manual focus/zoom record and playback. Moves can be recorded in Flair and frame accurately played back.
Software
Our rigs are programmed using Flair Motion Control software, the most advanced motion control software available. Moves can be planned in 3D packages, fed into Flair and executed by our rigs. Reversely, moves programmed in Flair can be exported to 3D packages. For following live action or adding a handheld feel we have handweels and pan bars (encoded Fluid head) as well as options for manual focus/zoom record and playback.
Modula Specs
General
Maximum Height
Lowest position
Max reach (from rotate centre)
Rig Dimensions
Lowest Travel Height
Rig Width
Rig Length
Shooting Speeds
Feet Vertical move
Feet Horizontal move
Track Speed
Track
Roll
Weights
Rig
Max Camera Payload
Power Requirements
Stage
Generator
Feet
Meters
9 ft
2.74 m
5 in
12 cm
4ft 4in
1.32 m
Feet
Meters
5 ft
1.5 m
2.5 ft
0.74 m
6.7 ft
2 m
Feet
Meters
3ft /sec
1m /sec
10ft /sec
3m /sec
Feet
Meters
10ft /sec
3m /sec
None (available on request)
-
Pounds
Kilograms
300 lb
140 kg
-
-
Pounds
Kilograms
120V
2k
