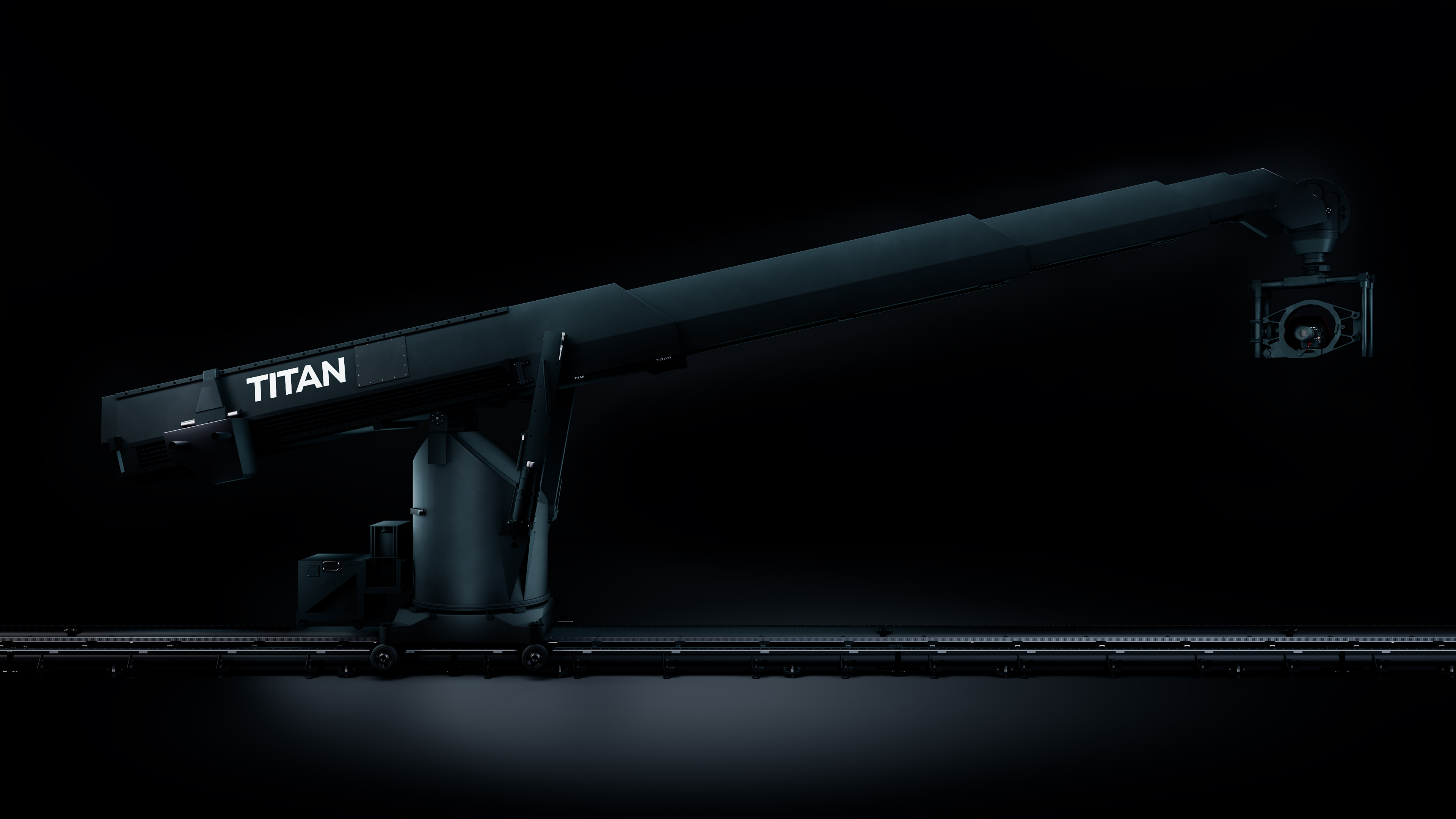

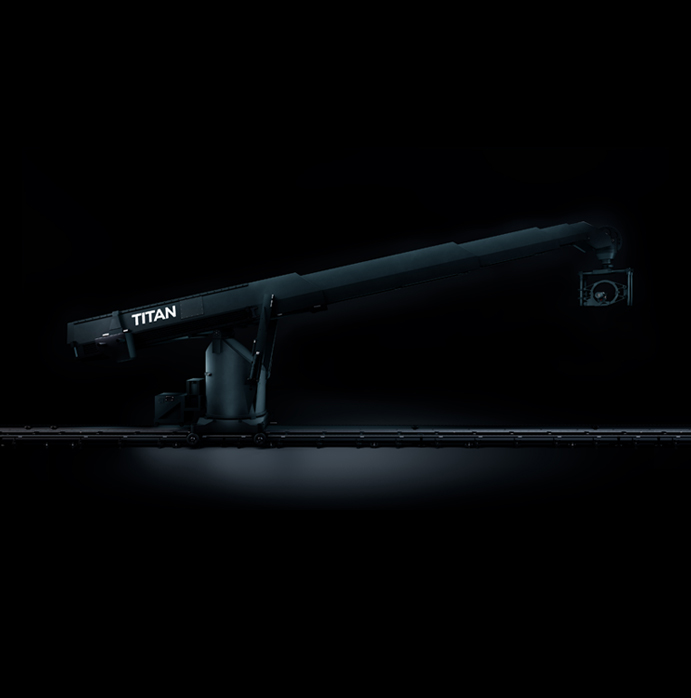

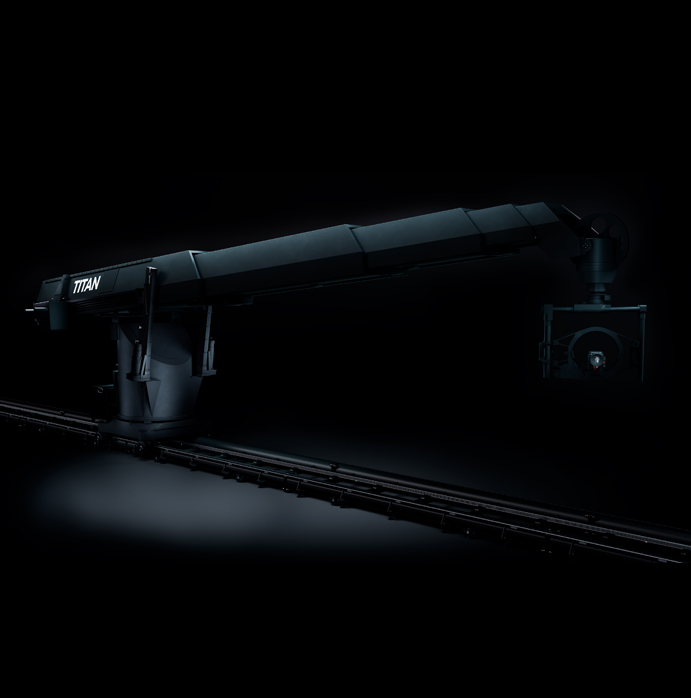

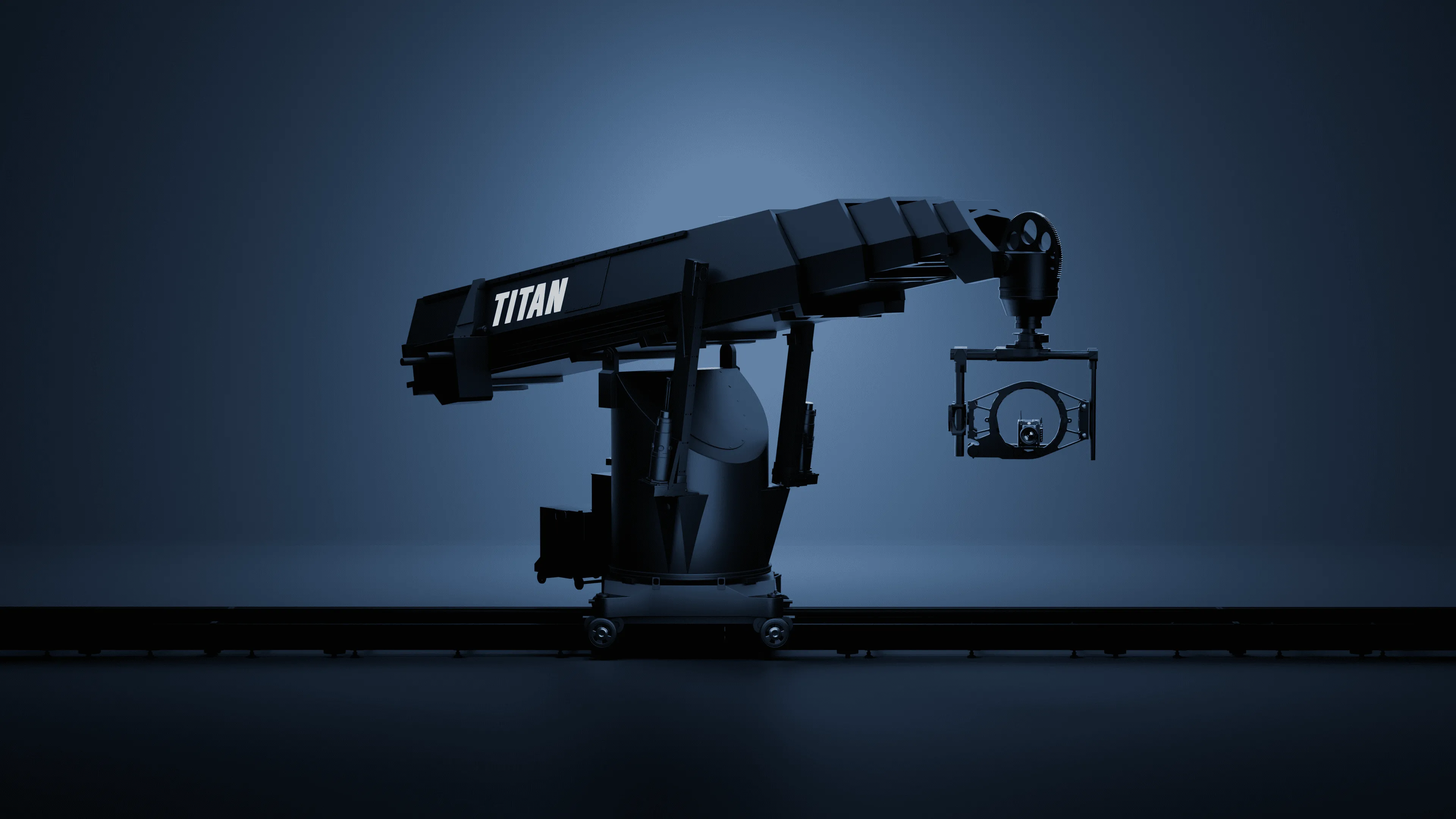

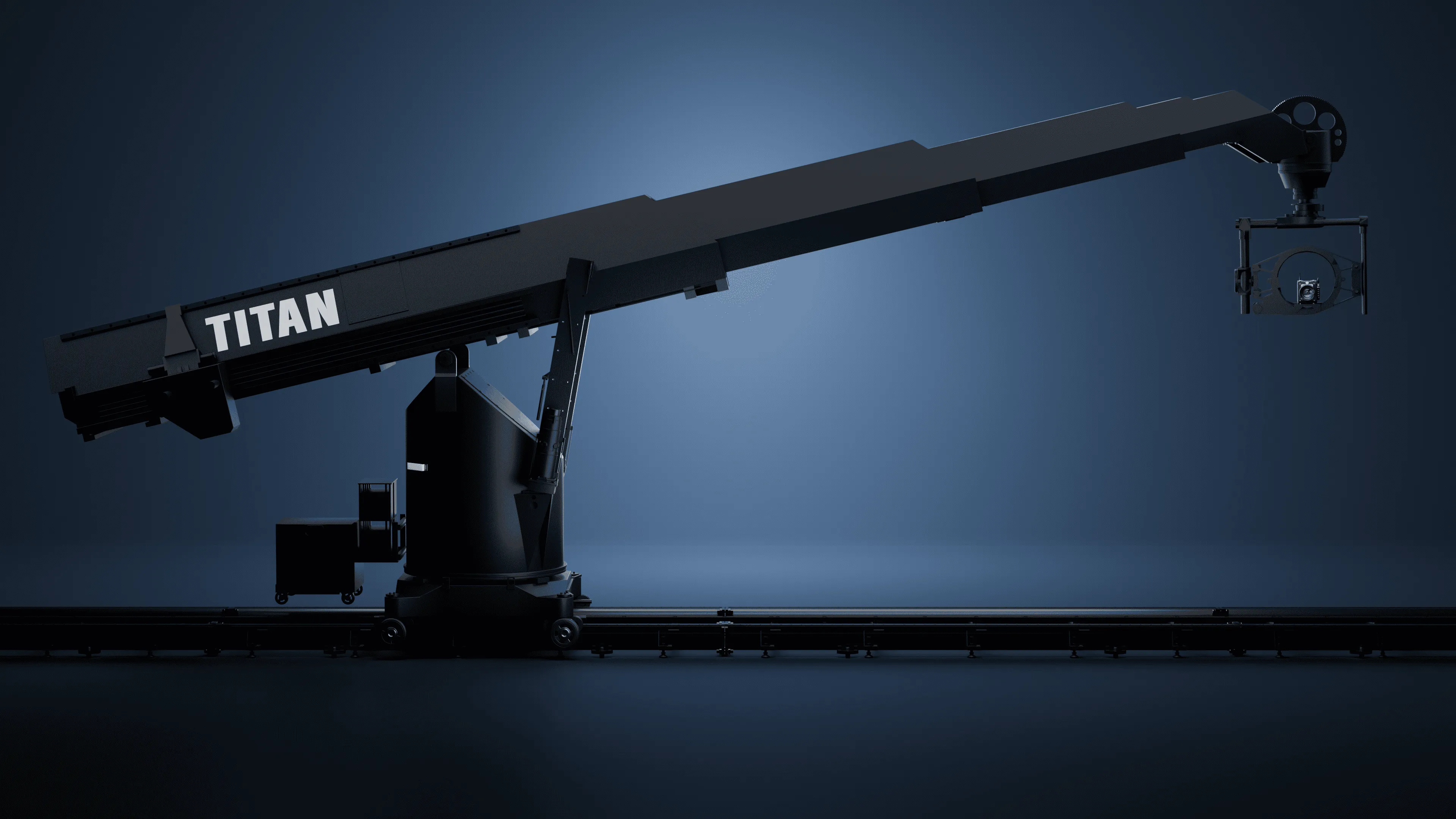

Titan Motion Control Rig

For the largest range of motion and lens heights exceeding any other motion control rig in the world, get the Titan. The Titan offers the greatest range of precision telescopic movement of any system available, which provides a versatility and style of moco shooting not found with any other motion control system. For example, before the Milo, “pull out” or “push in” type of shots were accomplished by moving the rig along track. Many times however track would end up in frame as you pulled out and would require time in post-production to paint out. Titan’s 22.5ft telescoping range means many shots of this type can be done without track.

1.6 HOURS
Set up time
61 LB
Vertical travel
29 FT 6 IN
Reach
15 FT/SEC
Max lens height

Range

Let your director's imagination run wild with the Titan arm, offering the largest range of motion and a 30ft telescopic arm, capable of shots unachievable with any fixed arm rigs. When it comes to the Titan size does matter.

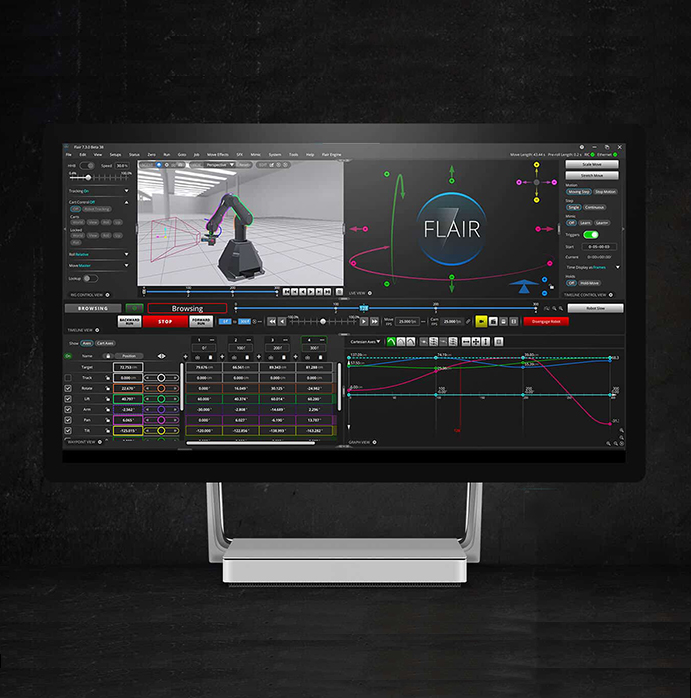

Software

Our rigs are programmed using Flair Motion Control software, the most advanced motion control software available. Moves can be planned in 3D packages, fed into Flair and executed by our rigs. Reversely, moves programmed in Flair can be exported to 3D packages. For following live action or adding a handheld feel we have handweels and pan bars (encoded Fluid head) as well as options for manual focus/zoom record and playback.

Download Specs

Milo Specs

Titan Specs

Range
Feet
Meters
Maximum Height (looking down)
28ft 6in
8.7 m
Lowest position
-14 ft
-4.3 m
Max reach (from rotate centre)
29ft 6in
9 m
Minimum reach
7ft
2.15m
Rig Dimensions
Feet
Meters
Lowest Travel Height
7ft 10in
2.4 m
Rig Width
4ft 4in
1.3m
Rig Length
16ft 6in
5.0m
Shooting Speeds
Feet
Meters
Feet Vertical move
Arm Extension dependent
-
Feet Horizontal move
Arm Extension dependent
-
Track
6ft/sec
1.8m /sec
Roll
Unlimited
120 degrees /sec
Max Speed at Camera
10ft/sec
3m/sec
Weights
Pounds
Kilograms
Rig
4000 lb
1814 kg
Max Camera Payload
44lbs
20kg
Power Requirements
Power
Stage
120/208 5 Wire 3 Phase Camlok
Generator
15kW
